DC 7010 Cooling Fan: Ultra-Slim 70mm Solution for Space-Constrained Applications

In the world of electronics cooling, every millimeter counts. When you're designing a 1U server, building a compact NAS, or creating a slim 3D printer, you can't always fit a standard 25mm thick fan. That's where the DC 7010 series comes in – an ultra-slim 70x70x10mm brushless cooling fan that delivers impressive airflow in a remarkably thin profile.

Why the 70x70x10mm Form Factor Matters

The 7010 form factor (70mm diameter, 10mm thickness) is the sweet spot between the smaller 60mm fans (which often struggle with airflow) and larger 80mm fans (which may not fit in tight spaces). Here's why it's becoming increasingly popular:

Space Efficiency

• 10mm thickness vs. standard 25mm = 60% space savings
• Perfect for 1U rack servers where height is strictly limited to 44.45mm
• Ideal for compact electronics like mini-PCs, routers, and IPCs

Performance Balance

Despite its slim profile, the DC 7010 delivers: - Up to 19.3 CFM airflow - Up to 3.30 mmH2O static pressure - 19.5-30.5 dBA noise levels (model dependent)

How DC Brushless Fans Work

Understanding the technology helps you choose the right fan for your application.

Brushless DC Motor Principle

Unlike traditional brushed motors, brushless DC (BLDC) motors use electronic commutation instead of mechanical brushes:

1. Permanent magnet rotor – The fan blades are attached to a rotor with permanent magnets
2. Electromagnetic stator – Stationary coils create a rotating magnetic field
3. Electronic controller – A PCB inside the fan switches the coil currents in sequence
4. No physical contact – No brushes means no friction, no sparks, and longer life

PWM Speed Control

The DC 7010 supports PWM (Pulse Width Modulation) control, allowing precise speed adjustment:

PWM Signal (25kHz) → Speed Control
- 100% duty cycle = Max speed (3500 RPM)
- 50% duty cycle = ~1750 RPM
- 0% duty cycle = Fan stopped

Benefits of PWM: - Precise speed control from 0-100% - Lower power consumption at reduced speeds - Automatic thermal management when connected to motherboard headers - Smoother operation vs. voltage-based speed control

Bearing Types: Which One to Choose?

The DC 7010 offers three bearing options, each with distinct characteristics:

Sleeve Bearing

• Lifespan: 30,000 hours
• Noise: Lowest
• Cost: Most economical
• Best for: Vertical mounting, cost-sensitive projects
• Limitation: Not ideal for horizontal mounting (oil distribution issues)

Ball Bearing

• Lifespan: 50,000 hours (longest)
• Noise: Slightly higher than sleeve
• Cost: Premium
• Best for: 24/7 operation, harsh environments, any mounting orientation
• Advantage: Most durable, handles temperature extremes well

Hydraulic Bearing

• Lifespan: 40,000 hours
• Noise: Balanced (lower than ball)
• Cost: Mid-range
• Best for: Quiet computing, horizontal mounting, balanced performance
• Advantage: Best combination of lifespan and noise performance

DC 7010 Specifications at a Glance

P-Q Curve

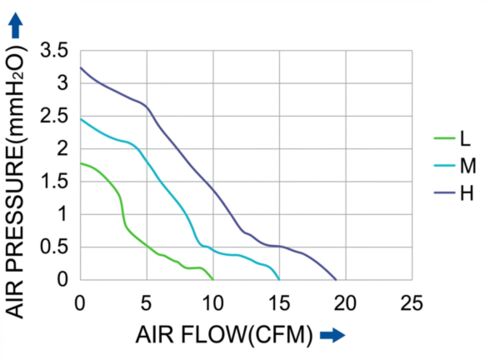

The P-Q (Pressure-Airflow) curve shows the fan's operating range under different backpressure conditions:

Reading the P-Q Curve: - Free air (0 mmH2O): Maximum airflow (19.3 CFM for high-speed model) - Blocked airflow (max pressure): Maximum static pressure (3.30 mmH2O) - Operating range: Real-world performance falls between these extremes

Applications: Where DC 7010 Excels

1U Rack Servers

The 10mm thickness is critical for 1U servers (44.45mm height). With CPUs, memory, and storage all competing for space, every millimeter matters. The DC 7010 provides adequate cooling while maintaining the slim profile required.

Recommended model: High-speed version with ball bearing for 24/7 operation

3D Printers

Compact 3D printers often need cooling for both the hotend and the controller board. The 7010's small size fits where larger fans can't, while still providing adequate airflow for PLA printing.

Recommended model: Medium-speed with hydraulic bearing for quiet operation

Network Attached Storage (NAS)

Home and small business NAS devices prioritize quiet operation. The low-speed DC 7010 at 19.5 dBA is nearly inaudible in a typical home environment.

Recommended model: Low-speed with sleeve or hydraulic bearing

Small Form Factor PCs

Mini-ITX and nano-ITX builds often have unconventional airflow paths. The 7010 can be positioned in tight corners to provide spot cooling for VRMs, RAM, or M.2 SSDs.

Recommended model: Medium-speed with PWM for automatic thermal control

LED Display Cooling

LED panels generate significant heat in thin enclosures. The 7010's slim profile fits behind display modules while the UL94V-0 flame-retardant material adds an extra safety margin.

Recommended model: Medium or high-speed based on panel density

Industrial PCs & Telecom Equipment

Industrial environments demand reliability. The ball bearing version with its 50,000-hour lifespan handles elevated temperatures and continuous operation.

Recommended model: High-speed with ball bearing

Quality & Safety Certifications

The DC 7010 meets international standards:

• CE – European safety compliance
• RoHS – Restriction of Hazardous Substances
• cURus (CAUS) – North American safety certification
• UL94V-0 – Flame retardant material rating (highest level)

The UL94V-0 rating means the plastic housing self-extinguishes within 10 seconds when exposed to flame, making it suitable for applications where fire safety is critical.

Customization Options

As a factory-direct manufacturer, MEGA Tech offers extensive customization:

Electrical

• Custom voltage ranges
• Special speed profiles
• Tachometer output (3-wire)
• PWM input (4-wire)

Mechanical

• Custom wire lengths (standard: 300mm)
• Connector types (XH2.54, JST, Molex, etc.)
• Custom fan blade colors
• Logo printing on frame

Performance

• Balanced for specific backpressure
• Optimized for minimum noise
• High-altitude versions

MOQ: 100 pieces for standard configurations, varies for custom designs

Installation Guide

Step 1: Verify Dimensions

Measure your mounting holes – standard 70mm fans have: - Mounting hole spacing: 61.5mm diagonal - Hole diameter: 4.3mm - Overall: 70x70x10mm

Step 2: Choose Orientation

Consider airflow direction: - Intake: Pulls cool air into the enclosure - Exhaust: Pushes hot air out - Most fans have arrows on the frame indicating rotation and airflow direction

Step 3: Mount Securely

Use the included screws or rubber vibration dampeners: - Screws: Secure fit, direct metal contact - Rubber mounts: Reduce vibration transfer, quieter

Step 4: Connect Power

• 2-pin: Power and ground only (fixed speed)
• 3-pin: Adds tachometer output (speed monitoring)
• 4-pin PWM: Full speed control via motherboard

Step 5: Test & Monitor

Before final assembly: - Verify fan spins freely - Check for unusual vibration or noise - Monitor temperatures under load

Comparison: DC 7010 vs. Alternatives

DC 7010 vs. 80mm Fans (8025)

• 7010 advantage: 60% thinner, fits in tighter spaces
• 8025 advantage: Higher airflow (typically 30+ CFM)
• Verdict: Choose 7010 for space constraints, 8025 for maximum cooling

DC 7010 vs. 60mm Fans (6010/6025)

• 7010 advantage: Better airflow, less noise at same RPM
• 60xx advantage: Smaller footprint
• Verdict: 7010 when you can fit 70mm, 60xx only when space is extremely tight

DC 7010 vs. Premium Brands (Noctua, be quiet!)

• 7010 advantage: Factory-direct pricing, customization options
• Premium brands: Established reputation, extensive testing data
• Verdict: For OEM/industrial applications, 7010 offers comparable performance at better value; for enthusiast builds, premium brands may offer marginally better acoustic profiles

Frequently Asked Questions

How long will a DC 7010 fan last?

With proper operating conditions: - Sleeve bearing: 30,000 hours (~3.4 years continuous) - Hydraulic bearing: 40,000 hours (~4.5 years continuous) - Ball bearing: 50,000 hours (~5.7 years continuous)

Can I use a 12V fan with a 5V power supply?

No. Always match the rated voltage. Using 5V on a 12V fan will result in: - Fan may not start - Reduced speed if it does run - Potential overheating of the motor driver

What's the difference between CFM and static pressure?

• CFM (Cubic Feet per Minute): Volume of air moved – important for unrestricted airflow
• Static pressure (mmH2O): Force behind the air – important for pushing through heatsinks, filters, or restricted spaces

Choose based on your application: - Open airflow: prioritize CFM - Restricted airflow: prioritize static pressure

Can this fan replace major brand fans (Delta, Nidec, Sunon)?

Yes, the DC 7010 is designed to be dimensionally and electrically compatible with standard 70x70x10mm fans from major manufacturers. Check the specifications for current and speed matching.

Conclusion

The DC 7010 series from MEGA Tech fills a crucial niche in the cooling market – providing adequate airflow in space-constrained applications. Whether you're building a compact server, designing industrial equipment, or creating consumer electronics, the ultra-slim 70x70x10mm form factor opens possibilities that thicker fans simply can't match.

With three bearing options, three voltage options, and three performance levels, you can select the exact combination that meets your requirements for lifespan, noise, and cooling performance. The UL94V-0 flame-retardant construction and international safety certifications make it suitable for demanding applications.

Key takeaways: - Ultra-slim 10mm profile for space-constrained applications - Up to 19.3 CFM airflow and 3.30 mmH2O static pressure - Three bearing types for different lifespan and noise requirements - PWM control for precise speed management - Factory-direct customization with 100-piece MOQ

For more information or to discuss custom requirements, contact MEGA Tech's engineering team.
