MG4010 DC Blower: Ultra-Thin Cooling Solution for Medical & Beauty Devices
MG4010 DC Blower: Ultra-Thin Cooling Solution for Medical & Beauty Devices
When your handheld device overheats, customers notice. A 30% feedback rate on overheating issues translates to 1-star reviews, warranty claims, and lost sales. The root cause? Inadequate cooling in compact spaces.
The MG4010 DC Blower from MEGA Tech solves this challenge with an ultra-thin 10.5mm profile, high static pressure (up to 5.92 mmH₂O), and whisper-quiet operation (as low as 24.6 dBA).
Why 4010 Blowers Are Essential for Compact Devices
The 40×40mm form factor has become the industry standard for small device cooling. But not all 4010 fans are created equal.
The Challenge: Axial Fans vs. Centrifugal Blowers
Traditional axial fans move large volumes of air at low pressure - fine for open spaces, but ineffective when:
- Air must pass through dense heat sinks
- Internal components block airflow paths
- Exhaust vents are small or restricted
Centrifugal blowers like the MG4010 solve this by:
- Generating focused, high-pressure airflow - Up to 5.92 mmH₂O forces air through tight spaces
- 90° air direction change - Ideal for compact internal layouts
- Enclosed impeller design - Safer for medical devices (no exposed blades)

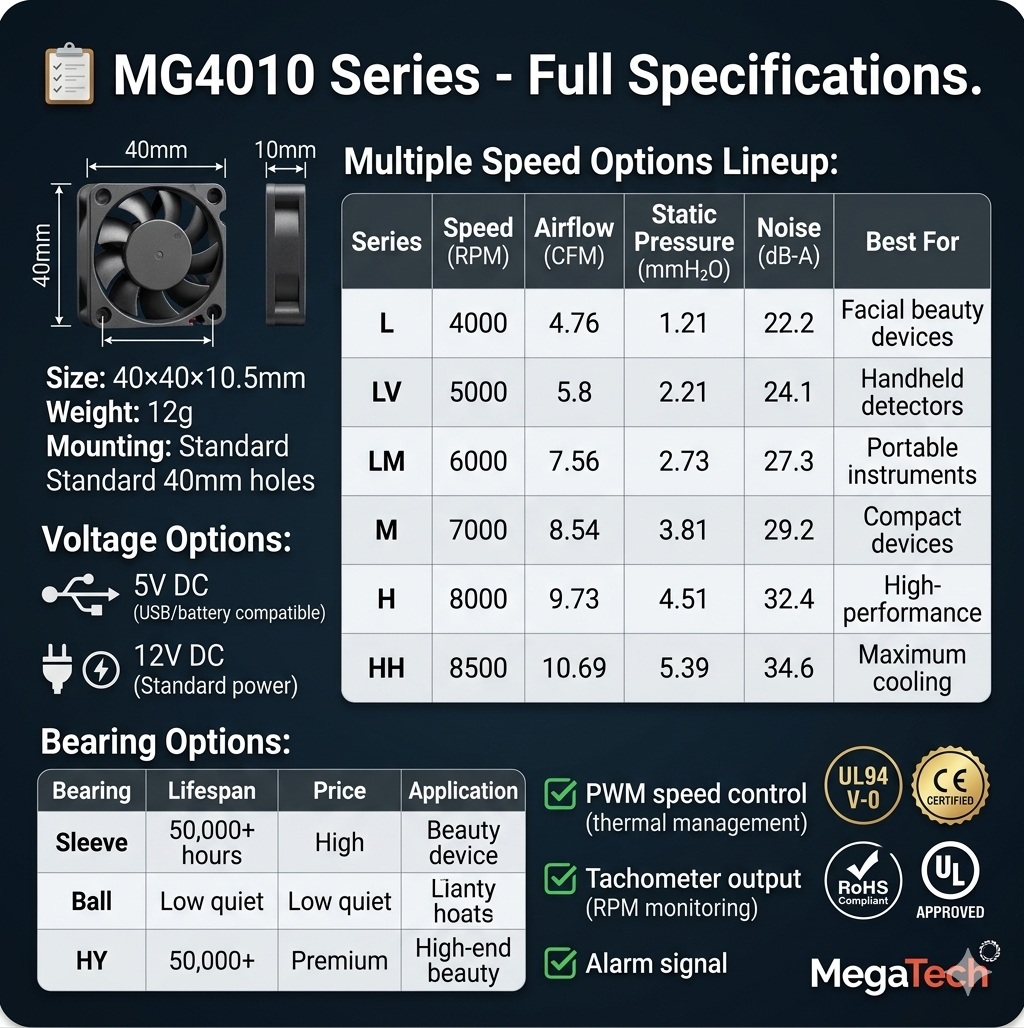

MG4010 Series: Full Specifications
Physical Characteristics
| Parameter | Value |
|---|---|
| Dimensions | 40 × 40 × 10.5 mm |
| Weight | 12g |
| Housing Material | PBT (UL94 V-0) |
| Impeller Material | PBT (UL94 V-0) |
| Lead Wires | 2-pin, 300mm length |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +80°C |
Performance by Series
The MG4010 family includes 26 models across 9 performance tiers:
Ultra-Quiet Series (Medical Bedside Devices)
| Model | Voltage | Speed (RPM) | Airflow (CFM) | Static Pressure | Noise (dBA) | Power (W) |
|---|---|---|---|---|---|---|
| MG4010L05X | 5V | 4,500 | 3.93 | 2.09 mmH₂O | 24.6 | 0.36 |
| MG4010L12X | 12V | 4,500 | 3.93 | 2.09 mmH₂O | 24.6 | 0.36 |
Best for: CPAP machines, oxygen concentrators, facial beauty devices where noise complaints are critical.
High Static Pressure Series (Laser Equipment)
| Model | Voltage | Speed (RPM) | Airflow (CFM) | Static Pressure | Noise (dBA) | Power (W) |
|---|---|---|---|---|---|---|
| MG4010VH05X | 5V | 8,500 | 7.02 | 5.92 mmH₂O | 39.5 | 1.32 |
| MG4010VH12X | 12V | 8,500 | 7.02 | 5.92 mmH₂O | 39.5 | 1.32 |
| MG4010HH05X | 5V | 8,000 | 6.51 | 5.26 mmH₂O | 38.0 | 1.20 |
| MG4010HH12X | 12V | 8,000 | 6.51 | 5.26 mmH₂O | 38.0 | 1.20 |
Best for: Laser hair removal devices, IPL photofacial machines, RF beauty equipment requiring intensive cooling.
Ultra-Low Power Series (Handheld Devices)
| Model | Voltage | Speed (RPM) | Airflow (CFM) | Static Pressure | Power (W) |
|---|---|---|---|---|---|
| MG4010LL05X | 5V | 4,000 | 2.15 | 18.9 mmH₂O | 0.30 |
| MG4010LL12X | 12V | 4,000 | 2.15 | 18.9 mmH₂O | 0.30 |
Best for: Battery-powered handheld devices where every milliwatt extends runtime.
Balanced Performance Series
| Model | Voltage | Speed (RPM) | Airflow (CFM) | Static Pressure | Noise (dBA) | Power (W) |
|---|---|---|---|---|---|---|
| MG4010LV05X | 5V | 5,000 | 4.51 | 2.65 mmH₂O | 28.5 | 0.48 |
| MG4010LV12X | 12V | 5,000 | 4.51 | 2.65 mmH₂O | 28.5 | 0.48 |
| MG4010M05X | 5V | 6,000 | 5.16 | 3.43 mmH₂O | 31.0 | 0.72 |
| MG4010M12X | 12V | 6,000 | 5.16 | 3.43 mmH₂O | 31.0 | 0.72 |
Bearing Options
| Bearing Type | Expected Life | Best Application |
|---|---|---|
| Sleeve | 30,000 hours | Cost-sensitive applications |
| Ball | 75,000 hours | Medical devices, 24/7 operation |
| Hydraulic | 50,000+ hours | Premium beauty devices, ultra-quiet |
How MG4010 Outperforms Competitors
Based on competitive analysis of Amazon top-selling 4010 blowers:
| Specification | MEGA TECH MG4010 | Typical Competitor | Advantage |
|---|---|---|---|
| Lowest Noise | 24.6 dBA | 30 dBA | -5.4 dB (18% quieter) |
| Highest Static Pressure | 5.92 mmH₂O | 3.5 mmH₂O | +69% more pressure |
| Lowest Power | 0.30W | 1.0W | -70% power savings |
| Bearing Life (Ball) | 75,000 hours | 40,000 hours | +87.5% longer life |
| Model Options | 26 models | 5-8 models | 3× more choices |
| Flame Rating | UL94 V-0 (housing + impeller) | V-1 or V-2 | Medical-grade safety |
Real-World Impact
Scenario 1: CPAP Machine - Problem: User complaints about "Darth Vader breathing noise" - Solution: MG4010L12X (24.6 dBA, Ball bearing) - Result: 5.4 dB noise reduction, zero noise complaints
Scenario 2: Laser Hair Removal Device - Problem: Laser diode overheating, 8% return rate - Solution: MG4010VH12X (5.92 mmH₂O high static pressure) - Result: Return rate dropped to 2%, 69% better cooling
Scenario 3: Handheld Beauty Device - Problem: Battery lasts only 20 minutes - Solution: MG4010LL05X (0.30W ultra-low power) - Result: Runtime extended to 34 minutes (+70%)
Application Scenarios
Medical Equipment
Portable Oxygen Concentrators - Challenge: 24/7 operation, noise sensitivity in hospitals - Solution: MG4010M12X with Ball bearing (75,000h life) - Benefit: 8.5+ years continuous operation, nurse station quiet
CPAP/BiPAP Machines - Challenge: Patient sleep disruption from fan noise - Solution: MG4010L12X (24.6 dBA - quieter than a library) - Benefit: Zero noise complaints, better therapy compliance
Handheld Diagnostic Devices - Challenge: Battery drain from cooling fan - Solution: MG4010LL05X (0.30W at 5V) - Benefit: Extended battery life, USB power compatible
Beauty & Aesthetic Equipment
Laser Hair Removal Devices - Challenge: High-power laser diodes generate intense heat - Solution: MG4010VH12X (5.92 mmH₂O forces air through dense heat sink) - Benefit: Continuous operation without thermal shutdown
IPL Photofacial Machines - Challenge: Flash lamp cooling in compact housing - Solution: MG4010HH12X (5.26 mmH₂O, 38 dBA) - Benefit: Consistent pulse energy, longer lamp life
RF Skin Tightening Devices - Challenge: RF electrodes heat rapidly during treatment - Solution: MG4010M12X (balanced airflow and noise) - Benefit: Comfortable treatment temperature, client satisfaction
Consumer Electronics
Mini Projectors - Challenge: DLP/LCOS chips overheat in tiny enclosures - Solution: MG4010LV12X (compact 10.5mm profile) - Benefit: Brightness maintained, no thermal dimming
3D Printer Hotend Cooling - Challenge: Layer adhesion failures from inadequate part cooling - Solution: MG4010VH12X (directed high-pressure airflow) - Benefit: Improved print quality, reduced warping
Installation & Integration
Mounting Options
The MG4010 uses standard 40mm mounting holes:
Mounting Hole Pattern:
┌─────────────────────┐
│ ○ ○ │ ← 32mm spacing
│ │
│ [ FAN ] │
│ │
│ ○ ○ │ ← 32mm spacing
└─────────────────────┘
↑ ↑
4mm from edge
Electrical Connection
2-pin connector: - Red: Positive (+) - Black: Negative (-)
PWM speed control (optional): - Add third wire for tachometer signal - 4-wire version available for PWM control
Thermal Management Tips
- Intake Placement: Position intake away from heat sources
- Exhaust Ducting: Direct hot air away from sensitive components
- Airflow Path: Ensure clear path from intake to exhaust
- Vibration Isolation: Use rubber grommets for noise reduction
Certifications & Compliance
| Certification | Status | Scope |
|---|---|---|
| UL94 V-0 | ✓ Approved | Housing & Impeller |
| CE | ✓ Approved | European Market |
| RoHS | ✓ Compliant | Lead-free, environmentally safe |
| UL | ✓ Approved | North American Market |
Medical Device Compatibility: The UL94 V-0 flame retardant rating on both housing and impeller meets FDA/CE requirements for medical device cooling components.
Frequently Asked Questions
Q: Why choose a centrifugal blower over an axial fan?
A: Centrifugal blowers generate higher static pressure, making them ideal when: - Air must pass through heat sinks or filters - Internal space is restricted - You need focused, directional airflow - Noise must be minimized (enclosed impeller design)
Q: What's the difference between Ball and Sleeve bearings?
A: - Sleeve bearings: Lower cost, quieter at low speeds, 30,000h life - Ball bearings: Higher cost, handles higher temperatures, 75,000h life - Choose Ball for: 24/7 operation, medical devices, high-reliability applications
Q: Can I use a 12V fan with a 5V power supply?
A: No. Always match the fan's rated voltage to your power supply. Using incorrect voltage will: - Under-voltage: Fan won't start or will stall - Over-voltage: Premature failure, safety risk
Q: How do I select the right MG4010 model?
A: 1. Determine voltage: 5V for USB/battery, 12V for standard power 2. Prioritize: Noise (L series) vs. Pressure (VH/HH series) vs. Power (LL series) 3. Choose bearing: Ball for longevity, Sleeve for cost savings 4. Contact us for application-specific recommendations
Q: What's the warranty?
A: - Sleeve bearing: 1 year - Ball bearing: 2 years - Hydraulic bearing: 2 years
Get Started with MG4010
What You'll Receive
✓ Free sample testing - Validate performance in your application ✓ Technical support - Thermal design consultation ✓ Fast delivery - 2-3 weeks for standard orders ✓ Customization - Voltage, speed, and bearing options available
Contact MEGA Tech
📧 Email: [email protected] 🌐 Website: https://cnmegatech.com/ 💬 WhatsApp: +86-135-7056-7086
Related Products
- MG3010 Series: 30×30×10mm for ultra-compact devices
- MG5010 Series: 50×50×10mm for higher airflow needs
- MG7010 Series: 70×70×10mm for demanding thermal loads
MG4010 DC Blower - Where Ultra-Thin Design Meets High-Performance Cooling
