MG4010C - Compact Projector Cooling Solution

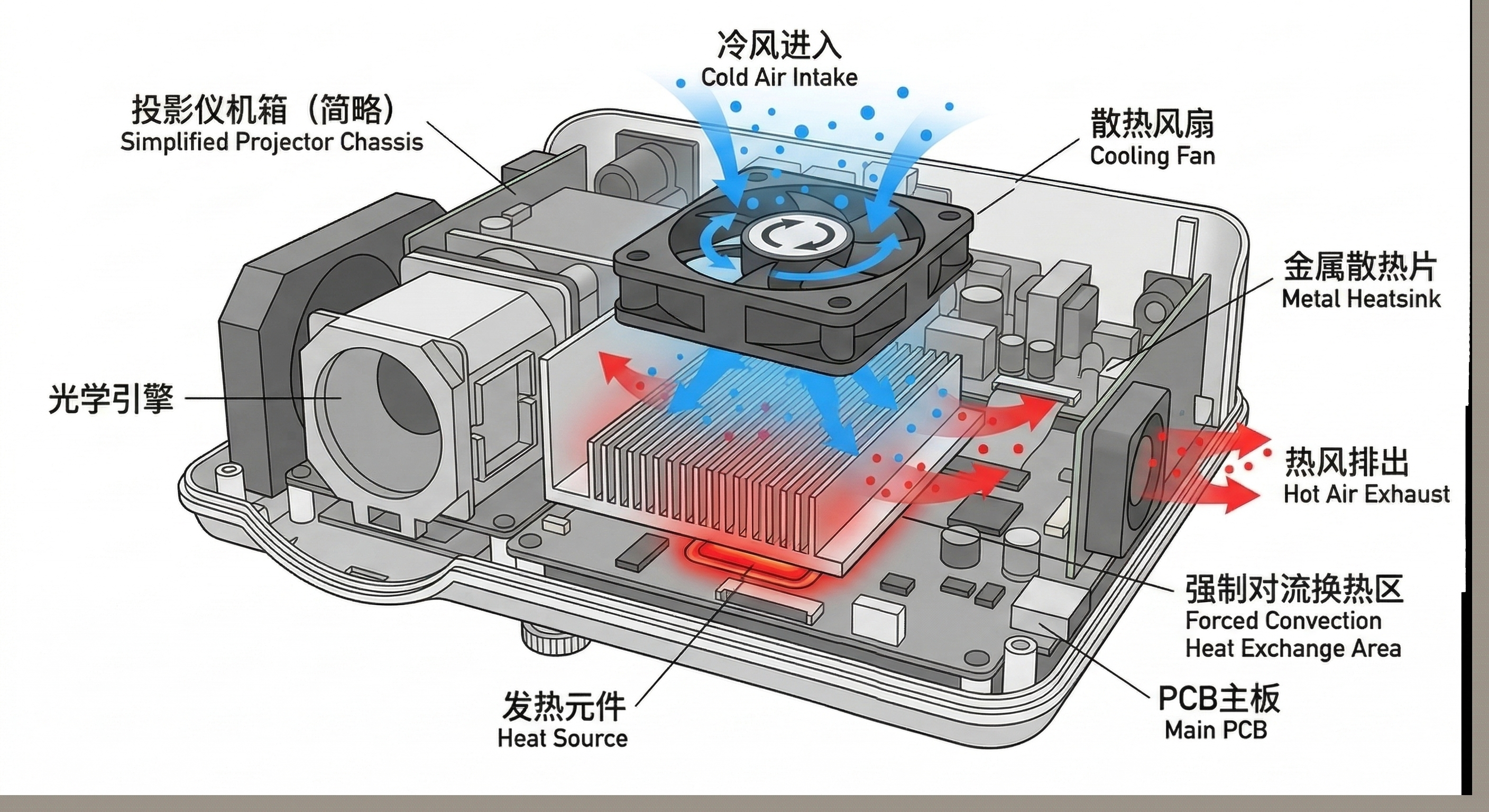

The Cooling Challenge in Compact Projectors

As the projector market moves toward miniaturization and portability, compact projectors are becoming increasingly popular. However, this trend brings a critical challenge: cooling space is severely compressed, while the heat output of high-brightness LED/laser light sources continues to increase.

In such tight spaces, poor thermal management leads to: - Projector frequency throttling, reduced brightness - Yellow tint and color distortion in images - Shortened LED/laser light source lifespan - In severe cases, bulb burnout

According to research from SID (Society for Information Display), LED junction temperature must be maintained below 80°C, and LCD panel operating temperature should not exceed 82.5°C. Once these critical temperatures are exceeded, both projector performance and lifespan are severely compromised.

Cooling Principle: Forced Convection Heat Transfer

In such confined spaces, passive metal heat dissipation alone is insufficient. Forced convection must be introduced. To help you understand this intuitively, I've created a simple physics simulator - give it a try:

💡 Tip: Try increasing the ambient temperature and lowering the fan voltage to observe how quickly the LED core temperature rises.

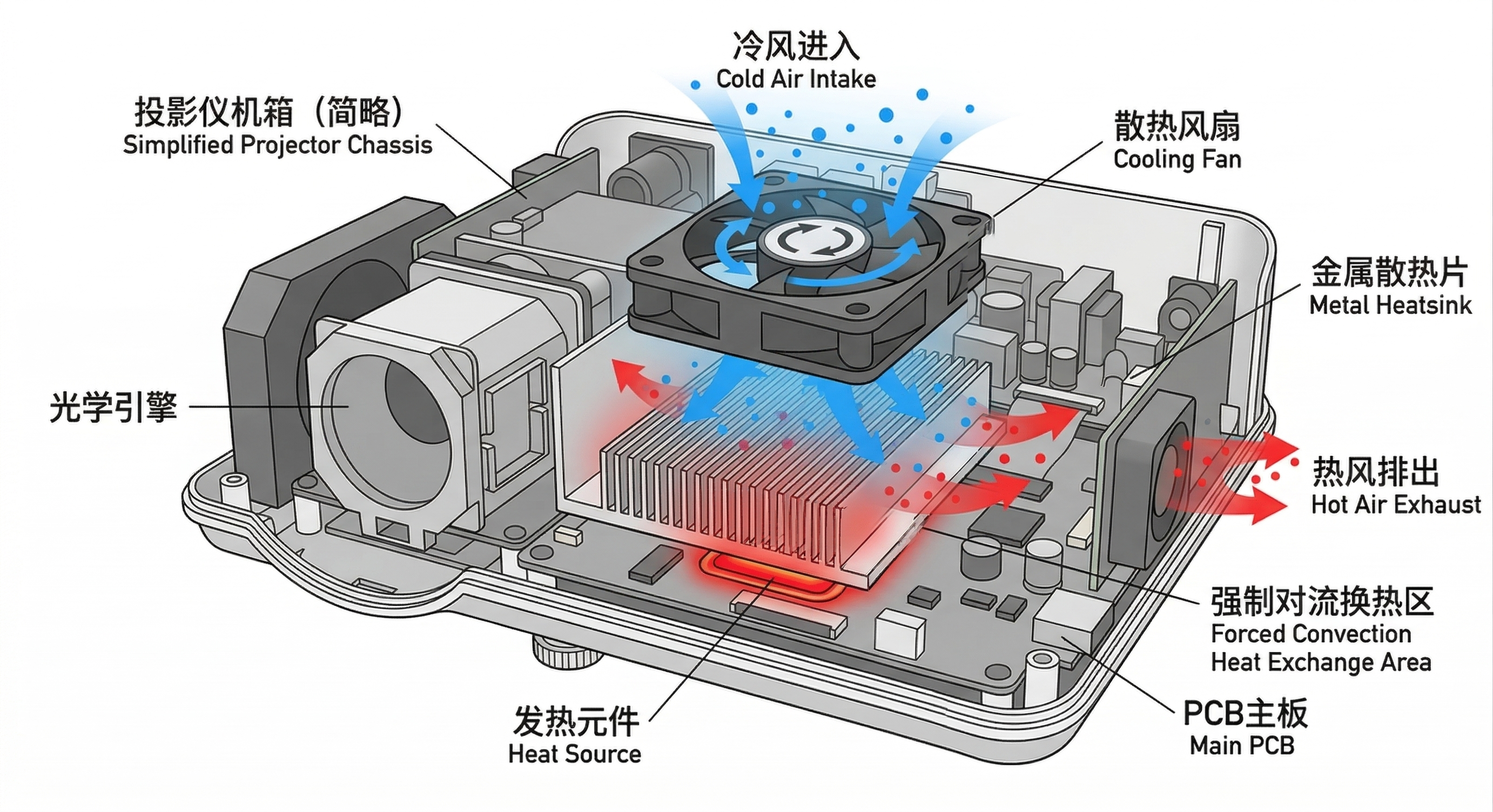

Core Cooling Process:

1. Cool Air Intake: Blue arrows and particles represent cool air drawn in from outside by the cooling fan
2. Forced Convection Heat Exchange: The fan pushes cool air toward metal heatsinks, where it directly contacts metal fins heated by components (such as LED light source driver chips)
3. Hot Air Exhaust: Blue and red particles mix in the heatsink area (heat exchange), cool air absorbs heat, becomes red hot air, and is pushed away from the heatsink and expelled from the chassis

MG4010C - Projector Cooling Expert

As the simulator demonstrates, we need a fan that's compact yet powerful. This is why the DC 4010 specification (40×40×10mm) has become the gold standard in projector solutions.

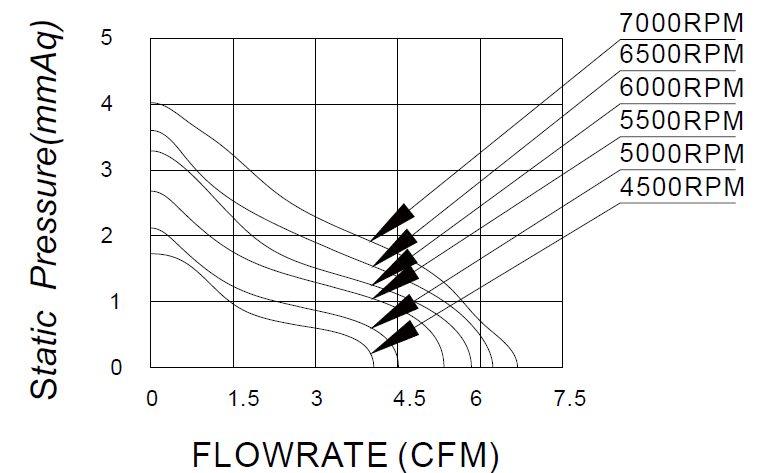

Technical Specifications

Why Choose MG4010C?

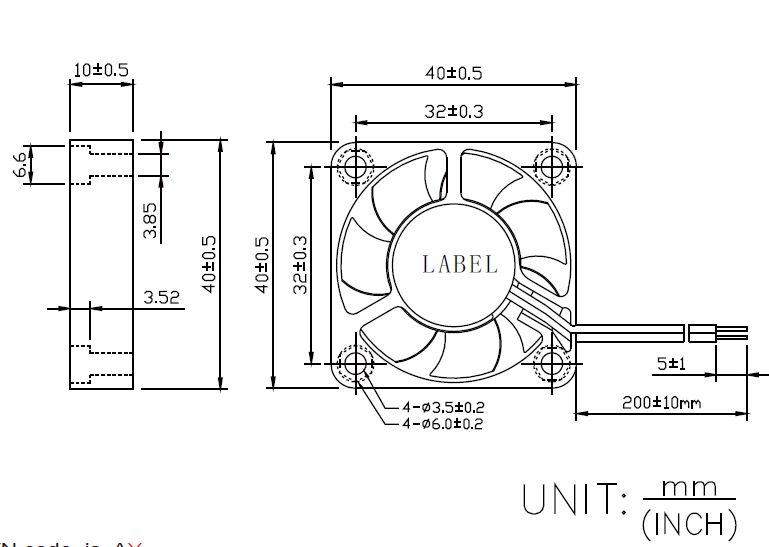

1. Perfect Size Match 40×40×10mm compact design, optimized for tight projector interiors, preserving valuable space.

2. Dual Voltage Support 5V and 12V dual voltage design adapts to different projector power schemes, providing greater design flexibility.

3. Efficient Cooling 6.68 CFM airflow and 4.02 mmH₂O static pressure ensure LED/laser light sources maintain optimal operating temperatures in compact spaces.

4. Ultra-Low Noise 25dB noise level provides powerful cooling without affecting the viewing experience.

5. Extended Lifespan 50,000-hour design lifespan ensures long-term stable projector operation, reducing maintenance costs.

Real-World Applications

Case Study: Temperature Reduction in Compact Projectors

According to research published in Cell Reports Physical Science (2025), effective thermal management solutions can reduce projector operating temperatures by 25.2°C. This significant temperature reduction demonstrates the critical importance of proper cooling fan selection in compact projector designs.

Key findings from the study: - LED junction temperatures must be maintained below 80°C to prevent efficiency degradation - Proper airflow management prevents thermal throttling during extended operation - Compact cooling solutions (like 40mm fans) are essential for miniaturized projector designs

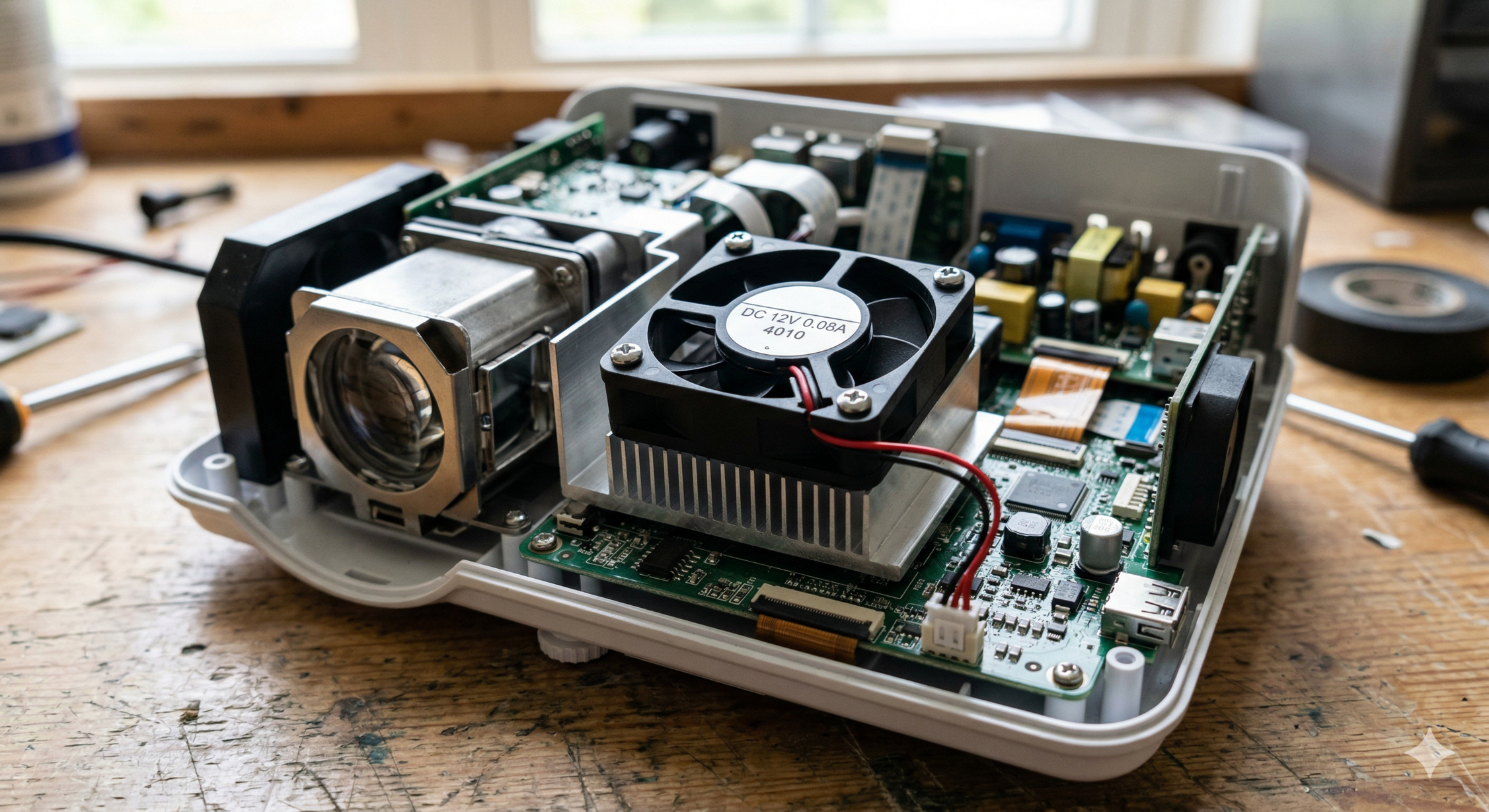

Application Scenarios

Portable Projectors MG4010C's 40×40×10mm compact size fits perfectly into portable projector chassis, while delivering 6.68 CFM airflow to maintain LED temperatures below the critical 80°C threshold. The 25dB ultra-low noise ensures the cooling system doesn't interfere with the viewing experience during movie playback.

Mini Projectors In ultra-compact designs where every millimeter counts, MG4010C's efficient 4.02 mmH₂O static pressure ensures adequate airflow through densely packed internal components. This prevents the "thermal suffocation" effect described in the study, maintaining stable image quality without color shifting or brightness degradation.

Smart Projectors For smart projectors with integrated Android systems and Wi-Fi modules, the additional heat load from processors requires reliable 24/7 cooling. MG4010C's 50,000-hour lifespan ensures long-term stable operation, while the dual voltage support (5V/12V) provides flexibility for different power architectures.

Educational & Business Projectors Extended operation in classroom or meeting room environments demands consistent thermal performance. MG4010C's UL94V-0 flame retardant rating and UL certification provide the safety assurance required for educational and commercial installations.

Conclusion

MG4010C is the ideal choice for compact projector cooling. The golden 40×40×10mm size, powerful 6.68 CFM airflow, ultra-low 25dB noise, and long 50,000-hour lifespan perfectly solve the thermal challenges brought by projector miniaturization.

Have you encountered any tricky thermal issues while configuring network equipment or assembling hardware? Feel free to discuss in the comments section below.
