150mm Cooling Fan Series: Ultimate Thermal Solution for Server Cabinets and Data Centers
Published: June 1, 2026
Category: Industrial Cooling Solutions
Reading Time: 6 minutes
150×150×50mm high-performance DC/AC cooling fan for server racks and industrial applications
Introduction
When it comes to cooling high-density server cabinets and telecom enclosures, the 150mm cooling fan series (150×150×50mm) stands as the industry standard for maximum thermal performance. Unlike smaller 120mm fans that struggle to deliver adequate airflow through restricted spaces, the 150mm form factor provides the perfect balance between airflow capacity, static pressure, and installation flexibility.
At MEGA Tech, we've engineered our 150mm fan series to deliver exceptional performance across DC (12V/24V/48V) and AC (120V/230V/380V) voltage options, making them suitable for everything from 48V telecom cabinets to enterprise data centers.
Why 150mm Fans Are Essential for Cabinet Cooling
The Airflow Challenge
Server cabinets and telecom enclosures present unique cooling challenges:
- High heat density: Modern servers generate 5-15kW per rack
- Airflow restrictions: Filters, cable management, and component density create backpressure
- Hot spots: Uneven heat distribution requires targeted cooling
- Continuous operation: 24/7 reliability demands robust fan design
A typical 42U server cabinet requires minimum 200 CFM of airflow to maintain safe operating temperatures. While 120mm fans can deliver 60-120 CFM each, the 150mm series provides 172-362 CFM per fan, reducing the number of fans needed while improving overall cooling efficiency.
Static Pressure Matters

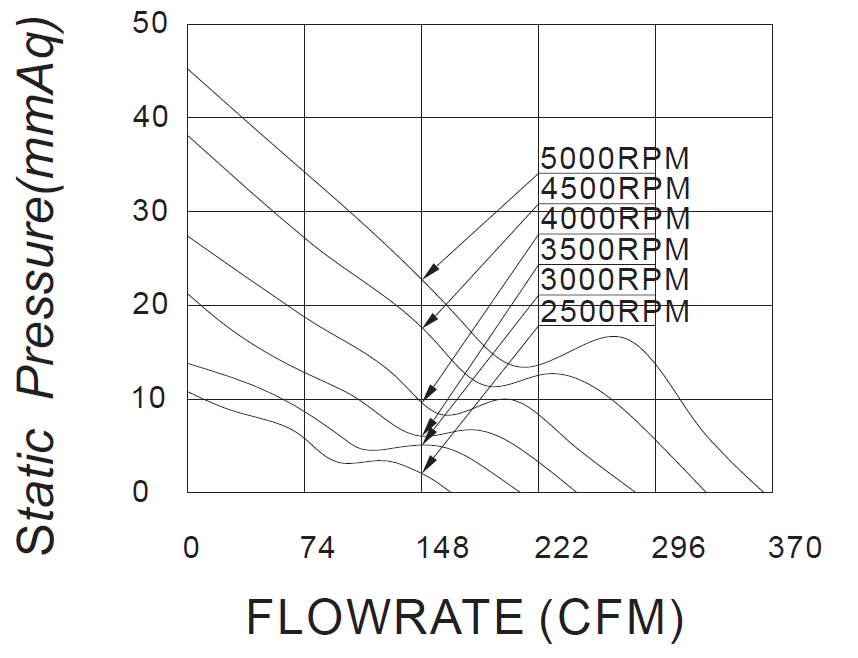

Performance curve showing airflow vs. static pressure relationship
Static pressure determines a fan's ability to push air through resistance. In cabinet applications, this includes:
- Air filters (0.05-0.2" H2O resistance)
- Cable obstructions
- Component heatsinks
- Rack door perforations
The MG15050HV48X delivers up to 45.4 mmH2O (0.90" H2O) of static pressure, easily overcoming these obstacles while maintaining high airflow.
Product Specifications
DC Series (Direct Current)
Our DC series offers precise voltage options for telecom, industrial, and computing applications:
| Model | Voltage | Speed (RPM) | Airflow (CFM) | Static Pressure (mmH2O) | Noise (dBA) | Power (W) |
|---|---|---|---|---|---|---|
| MG15050L12X | 12V DC | 2,500 | 172 | 10.9 | 56.1 | 9.6 |
| MG15050L24X | 24V DC | 2,500 | 172 | 10.9 | 56.1 | 9.6 |
| MG15050L48X | 48V DC | 2,500 | 172 | 10.9 | 56.1 | 9.6 |
| MG15050M12X | 12V DC | 3,000 | 209 | 15.3 | 58.3 | 28.8 |
| MG15050M24X | 24V DC | 3,000 | 209 | 15.3 | 58.3 | 28.8 |
| MG15050M48X | 48V DC | 3,000 | 209 | 15.3 | 58.3 | 28.8 |
| MG15050H12X | 12V DC | 3,500 | 248 | 21.3 | 62.5 | 53 |
| MG15050H24X | 24V DC | 3,500 | 248 | 21.3 | 62.5 | 53 |
| MG15050H48X | 48V DC | 3,500 | 248 | 21.3 | 62.5 | 53 |
| MG15050HH12X | 12V DC | 4,000 | 283 | 27.4 | 65.5 | 72 |
| MG15050HH24X | 24V DC | 4,000 | 283 | 27.4 | 65.5 | 72 |
| MG15050HH48X | 48V DC | 4,000 | 283 | 27.4 | 65.5 | 72 |
| MG15050VH12X | 12V DC | 4,500 | 326 | 37.6 | 68.2 | 91.2 |
| MG15050VH24X | 24V DC | 4,500 | 326 | 37.6 | 68.2 | 91.2 |
| MG15050VH48X | 48V DC | 4,500 | 326 | 37.6 | 68.2 | 91.2 |
| MG15050HV12X | 12V DC | 5,000 | 362 | 45.4 | 71.4 | 120 |
| MG15050HV24X | 24V DC | 5,000 | 362 | 45.4 | 71.4 | 120 |
| MG15050HV48X | 48V DC | 5,000 | 362 | 45.4 | 71.4 | 120 |
AC Series (Alternating Current)
For applications requiring direct AC power connection without power supply conversion:
| Model | Voltage | Speed (RPM) | Airflow (CFM) | Static Pressure (mmH2O) | Noise (dBA) | Power (W) |
|---|---|---|---|---|---|---|
| MG15050L01X | 120V AC | 2100/2400 | 137/155 | 3.0/3.9 | 39/45 | 21/20 |
| MG15050L02X | 230V AC | 2100/2400 | 137/155 | 3.0/3.9 | 39/45 | 21/20 |
| MG15050M01X | 120V AC | 2400/2600 | 155/170 | 7.5/9.7 | 45/49 | 28/27 |
| MG15050M02X | 230V AC | 2400/2600 | 155/170 | 7.5/9.7 | 45/49 | 28/27 |
| MG15050H01X | 120V AC | 2600/3000 | 170/196 | 11.5/14.0 | 49/56 | 38/36 |
| MG15050H02X | 230V AC | 2600/3000 | 170/196 | 11.5/14.0 | 49/56 | 38/36 |
| MG15050H03X | 380V AC | 2600/3000 | 170/196 | 11.5/14.0 | 49/56 | 38/36 |
General Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 150 × 150 × 50 mm |
| Frame Material | PBT (UL94V-0 flame retardant) |
| Bearing Type | Dual ball bearing (Sleeve optional) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Expected Lifespan | 50,000 hours @ 40°C |
| IP Rating | IP54 (optional) |
| Connector | 2-pin / 3-pin / 4-pin PWM |
Key Features
1. High-Efficiency Motor Design
Our brushless DC motors utilize advanced electromagnetic design to achieve:
- Efficiency up to 85% - reducing power consumption and heat generation
- Wide voltage tolerance - ±10% voltage variation acceptable
- Soft-start capability - reducing inrush current and extending lifespan
- PWM speed control - 4-pin models support 0-100% speed modulation
2. Optimized Blade Geometry
The 7-blade impeller design provides:
- Maximum airflow with minimum turbulence
- Reduced noise signature
- Improved static pressure performance
- Balanced air delivery across the operating range
3. Industrial-Grade Construction
Every MEGA Tech 150mm fan features:
- UL94V-0 rated materials - self-extinguishing in case of fire
- Reinforced frame - prevents warping at high temperatures
- Corrosion-resistant finish - suitable for harsh environments
- Precision-balanced rotor - minimizes vibration and noise
Applications
🖥️ Data Centers
Use Cases: - Server cabinet cooling (42U racks) - Network equipment enclosures - UPS and power distribution units - Hot/cold aisle containment systems
Recommended Model: MG15050H48X (48V DC) or MG15050H01X (120V AC)
Performance Benefit: Replace 4× 120mm fans with 2× 150mm fans while improving airflow by 40%
📡 Telecommunications
Use Cases: - 48V DC power cabinets - BTS (Base Transceiver Station) enclosures - 5G edge computing units - Fiber optic distribution frames
Recommended Model: MG15050H48X (48V DC, matching telecom power systems)
Performance Benefit: Direct 48V compatibility eliminates power conversion losses
⚡ Industrial Control
Use Cases: - PLC control cabinets - Variable frequency drives (VFD) - Motor control centers - Automation equipment
Recommended Model: MG15050M01X (120V AC) or MG15050M02X (230V AC)
Performance Benefit: AC power option simplifies installation in industrial environments
🔋 Renewable Energy
Use Cases: - Battery energy storage systems (BESS) - EV charging stations - Solar inverter cooling - Power conversion systems
Recommended Model: MG15050H48X (for 48V battery systems) or MG15050H01X (for grid-tied applications)
Selection Guide
How to Choose the Right 150mm Fan
Step 1: Determine Voltage
| Application | Recommended Voltage |
|---|---|
| Telecom cabinets | 48V DC |
| Data centers with DC distribution | 48V DC |
| Standard data centers | 120V/230V AC |
| Industrial machinery | 24V DC or 230V AC |
| Automotive/EV | 12V/24V DC |
Step 2: Calculate Required Airflow
Heat Load (W) ÷ Temperature Rise (°C) × 1.76 = Required CFM
Example: 3000W heat load, 15°C temperature rise
3000 ÷ 15 × 1.76 = 352 CFM required
Step 3: Consider Static Pressure Requirements
| Application | Typical Static Pressure Need |
|---|---|
| Open cabinet (no filters) | 3-5 mmH2O |
| Filtered cabinet | 8-12 mmH2O |
| High-density with cable management | 15-25 mmH2O |
| Extreme restrictions | 30+ mmH2O |
Step 4: Balance Noise vs. Performance
| Noise Level (dBA) | Suitable Environment |
|---|---|
| < 50 | Office environments |
| 50-60 | Controlled access areas |
| 60-70 | Equipment rooms |
| > 70 | Industrial facilities |
Installation Guide
Mounting Considerations
-
Airflow Direction: Most fans blow air outward from the label side. Verify direction before installation.
-
Mounting Orientation:
- Sleeve bearing: Vertical shaft preferred (±15° tolerance)
-
Ball bearing: Any orientation acceptable
-
Vibration Isolation: Use rubber grommets or silicone mounts to reduce vibration transfer.
-
Clearance: Maintain minimum 20mm clearance on intake and exhaust sides.
Electrical Connections
2-Pin Connection: - Red: Positive (+) - Black: Negative (-) / Ground
3-Pin Connection: - Yellow: Tachometer output (2 pulses per revolution) - Red: Positive (+) - Black: Ground (-)
4-Pin PWM Connection: - Blue: PWM control signal (5V logic, 25kHz recommended) - Yellow: Tachometer output - Green: Ground (-) - Black: Power ground (-)
Thermal Management Best Practices
-
Positive Pressure Design: Ensure intake airflow exceeds exhaust to prevent dust infiltration
-
Temperature Monitoring: Install temperature sensors at cabinet inlet and outlet
-
Redundancy: Use N+1 fan configuration for critical applications
-
Regular Maintenance: Clean filters and check fan operation quarterly
FAQ
Q: What's the difference between 150mm and 120mm fans?
A: 150mm fans deliver approximately 2-3× the airflow and 3-5× the static pressure of 120mm fans. They're ideal for high-density applications where 120mm fans would require multiple units to achieve the same cooling performance.
Q: Can I use 48V fans with 24V power?
A: Operating a 48V fan at 24V will result in approximately 50% speed reduction and significantly lower airflow. For optimal performance, always match fan voltage to power supply.
Q: What's the expected lifespan?
A: Our 150mm series with dual ball bearings is rated for 50,000 hours of continuous operation at 40°C ambient temperature. This translates to approximately 5.7 years of 24/7 operation.
Q: Are these fans suitable for outdoor use?
A: Standard models are rated IP20 for indoor use. IP54-rated options are available for harsh environments with dust and moisture exposure.
Q: Do you offer custom configurations?
A: Yes. We can customize: - PWM speed control curves - Special voltage requirements - IP rating upgrades - Connector types - Cable lengths
Why Choose MEGA Tech?
With over 15 years of experience in thermal management solutions, MEGA Tech delivers:
✅ Proven Reliability - Our fans power thousands of installations worldwide
✅ Technical Support - Free thermal analysis and fan selection assistance
✅ Quality Assurance - 100% tested before shipment
✅ Flexible Options - Custom configurations available
✅ Global Support - Fast response to technical inquiries
Get Started
Request a Sample:
Email us at [email protected] for free sample testing.
Technical Consultation:
Our engineering team can help you select the optimal fan for your application.
Bulk Orders:
Contact us for volume pricing and lead time information.
